Carlson Pile Driver Grade
Carlson Grade for Pile Driving Machines

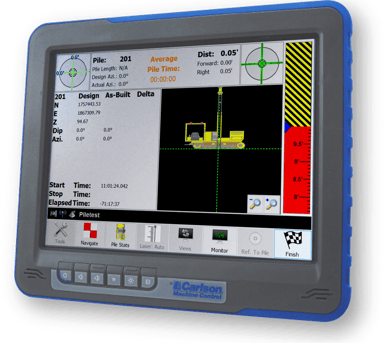

Carlson Machine Control PDGrade is an application-centric 3D positioning software for piling applications such as solar, construction and other applications. The software is combined with a state-of-the-art, integrated GNSS all-in-one sensor, a rugged, Windows-based control box, and offers a laser distance option for piling to an elevation, contour or pile depth for a complete pile machine guidance system.
Key Features

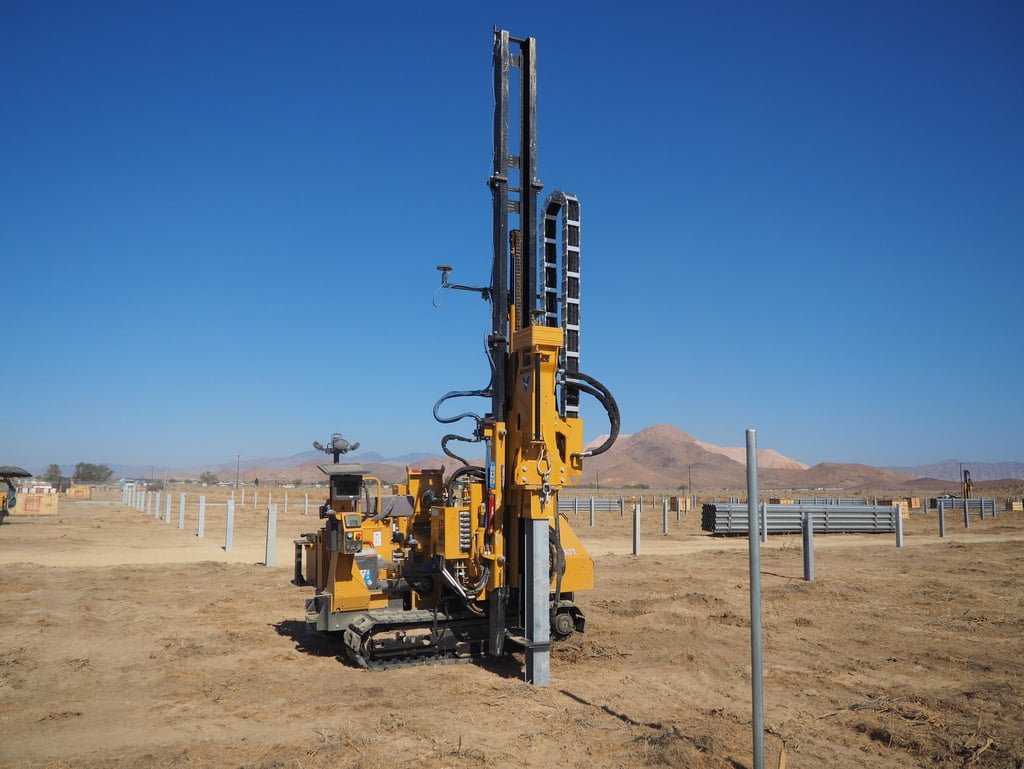

3D Machine Guidance Indicate/Control system for Pile Drivers for Solar farms and other applications
Able to handle large Pile Layout file
NTRIP and VRS compatible
Track machine utilization
Provide operators with more information to maintain consistent alignment of piles
Work as a standalone system or as part of a fleet environment with multiple machines
Create Pile Report out of Grade to a .CSV or .PDF
Easy-to-Use and Easy-to-Calibrate
With the Carlson PDGrade system, piling contractors can benefit from high accuracy navigation, positioning and easy-to-use software that offers features such as navigation to pile, pile location, as-builts, and production reports. The system also increases safety, as it requires fewer people to be near the machines when erecting piles.
Benefits include:
Consistently and accurately drive piles within a specified tolerance
Track project progression
Reduce rehandling of piles
Document position and height of all piles
Understand your cycle times per operator for training
PD Grade 3Z

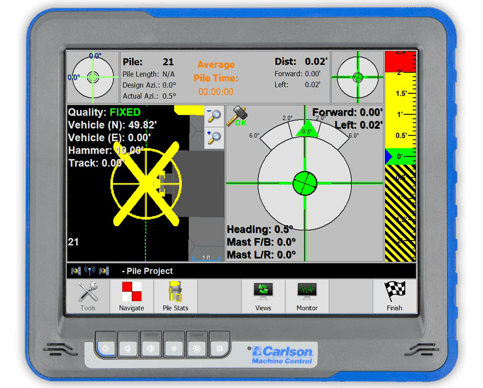

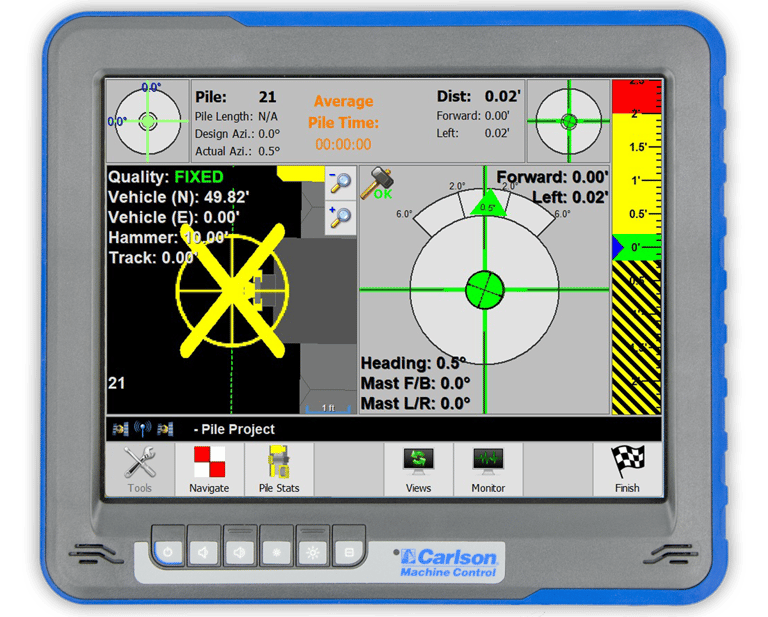

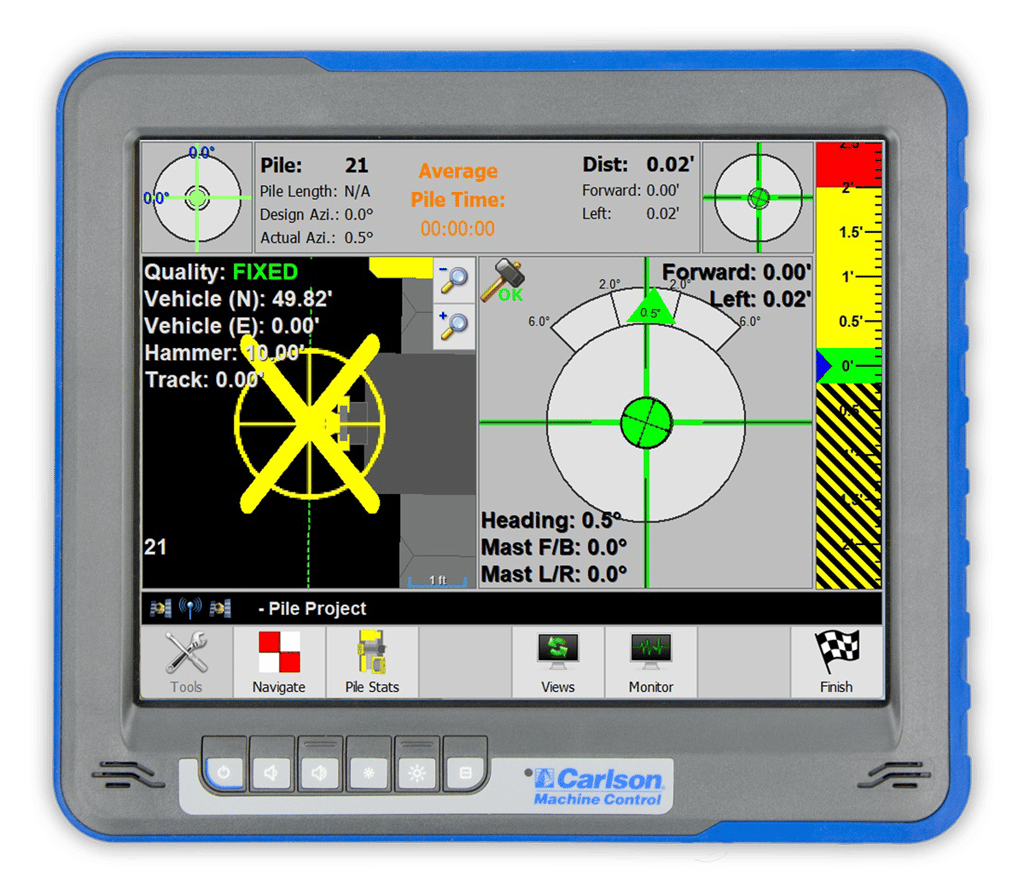

PD Grade 3Z is an enhanced package that allows users to achieve elevation tolerance automatically while driving.
Accurate
Pile with increased confidence
Efficient
Reduce or eliminate remediation and rework
Simple

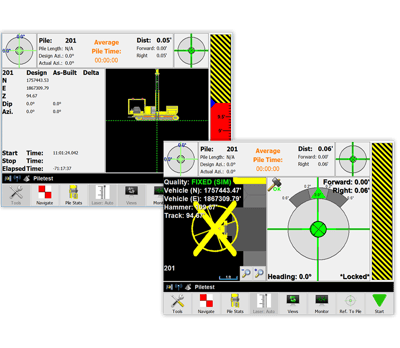

View real-time alignment on-screen
All-in-One
The complete grade solution For X, Y, and elevation

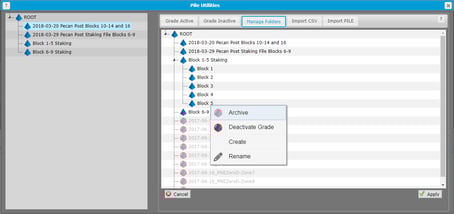

Integration with Carlson Command
Carlson’s complete monitoring and data management solution for machine control, Carlson Command, transmits data from machines to the office and from the office to machines in real-time. Command provides absolute oversight for site managers, allowing them to monitor multiple or single machines in a variety of viewing options from any remote location with an internet connection.
Productivity analysis
Increased safety, productivity and reporting capability
Data management of single or multiple sites
Direct machine to machine communication and data sharing with live and historical 3D machine playback
In-cab monitoring and training from the office
Create and customize tasks, delays and down codes
For sites without remote connectivity, data can be stored in the machine for post-analysis
